Arduino Project
- Language: C++
- Arduino: MEGA 2560
- Project date: April 17, 2020
- Project code: Click here to view code
Arduino MEGA 2560 - 8x8 LCD Display

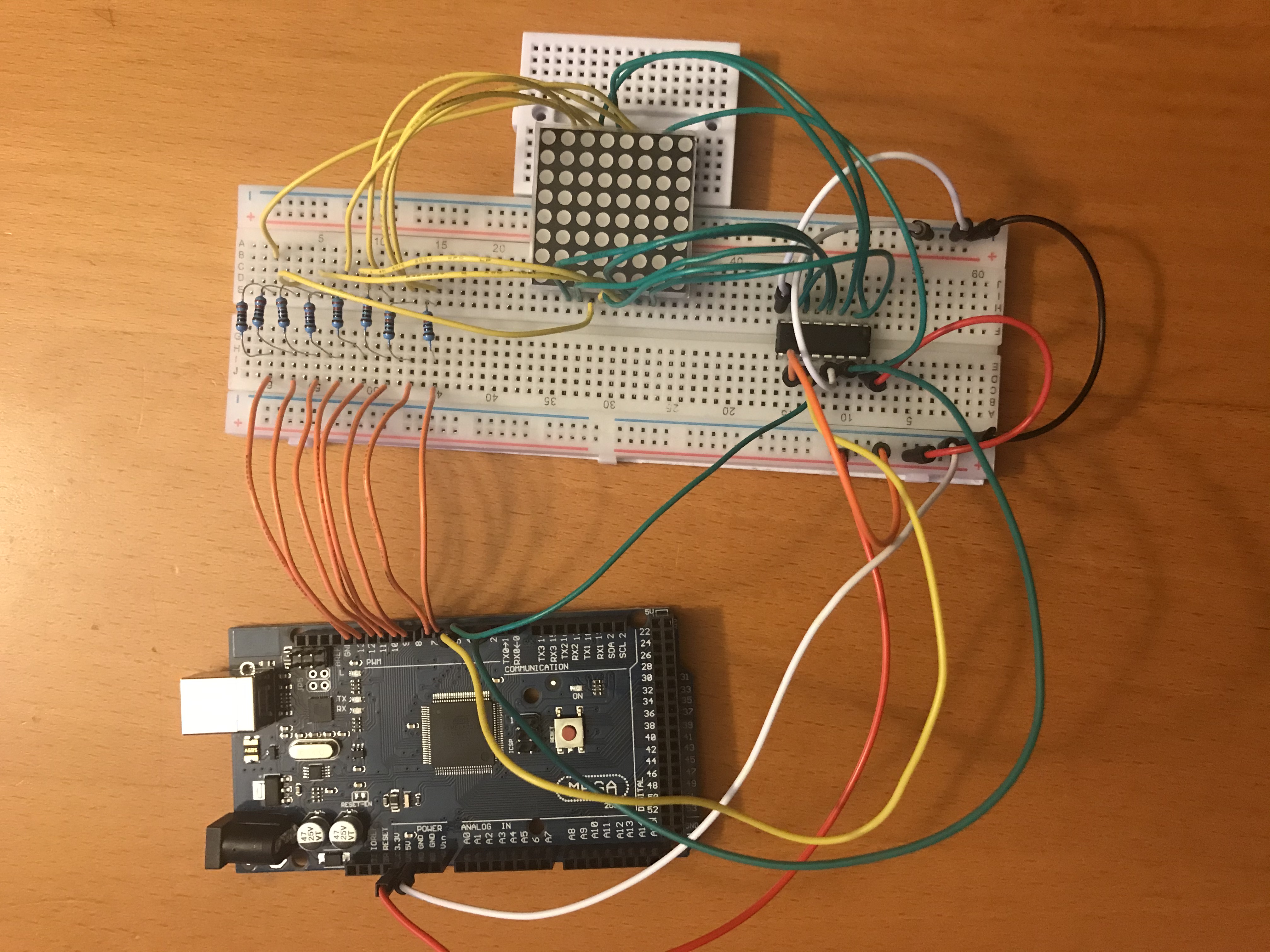

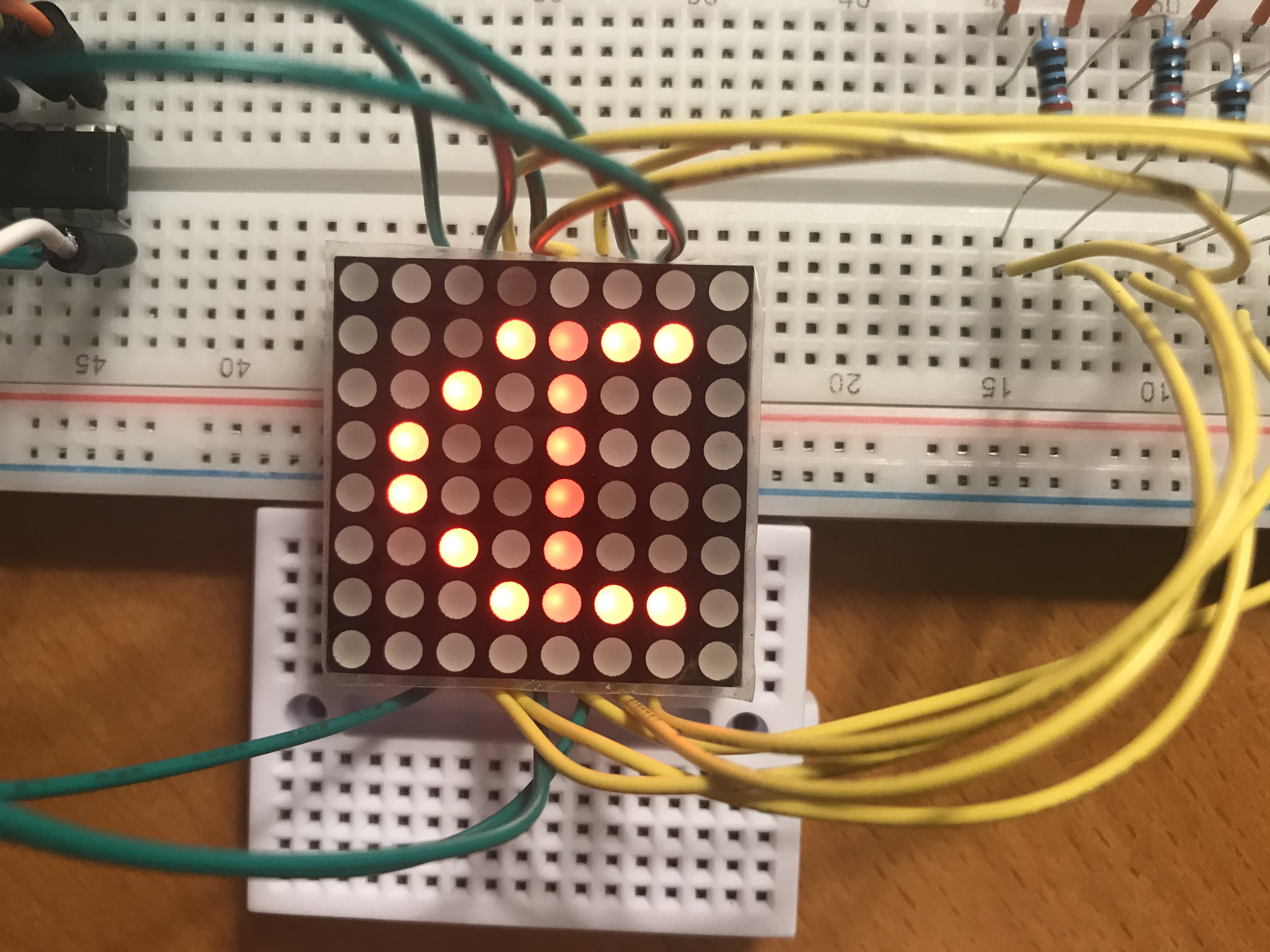

This project was done in Arduino IDE, and uploaded to the MEGA 2560 Arduino board. You will see one photo with the letter 'A', however, using the code you can program your LCD display to output any letter of your choice and also add more symbols or characters. The source code can be found through the link above.

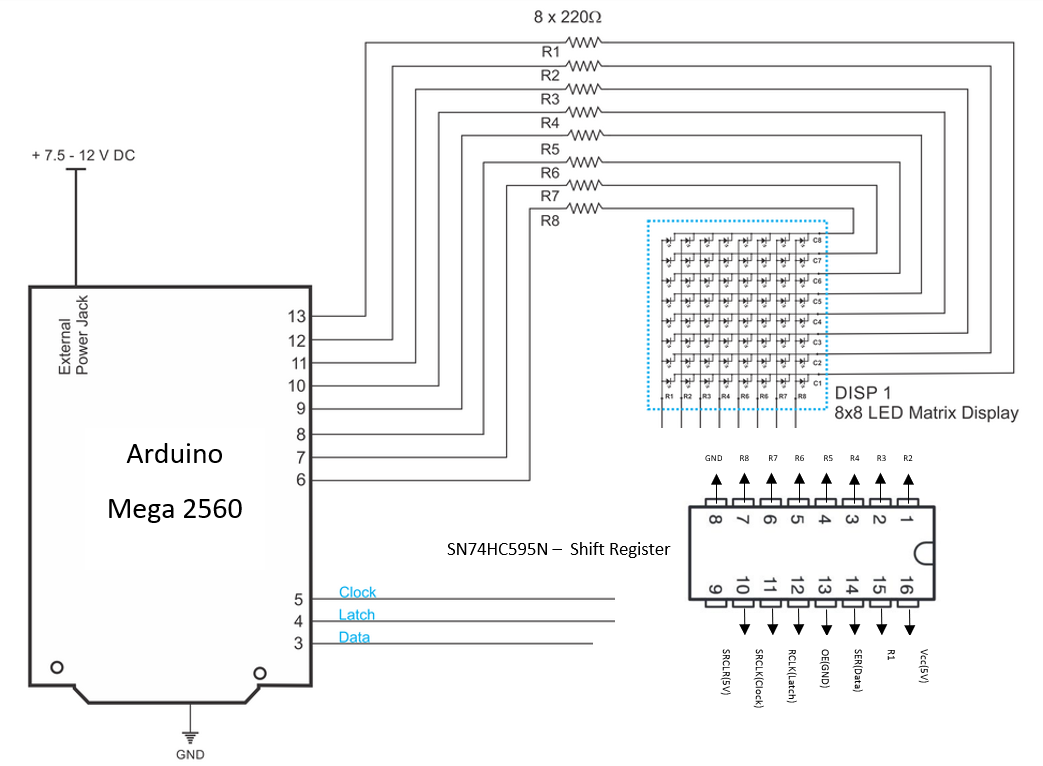

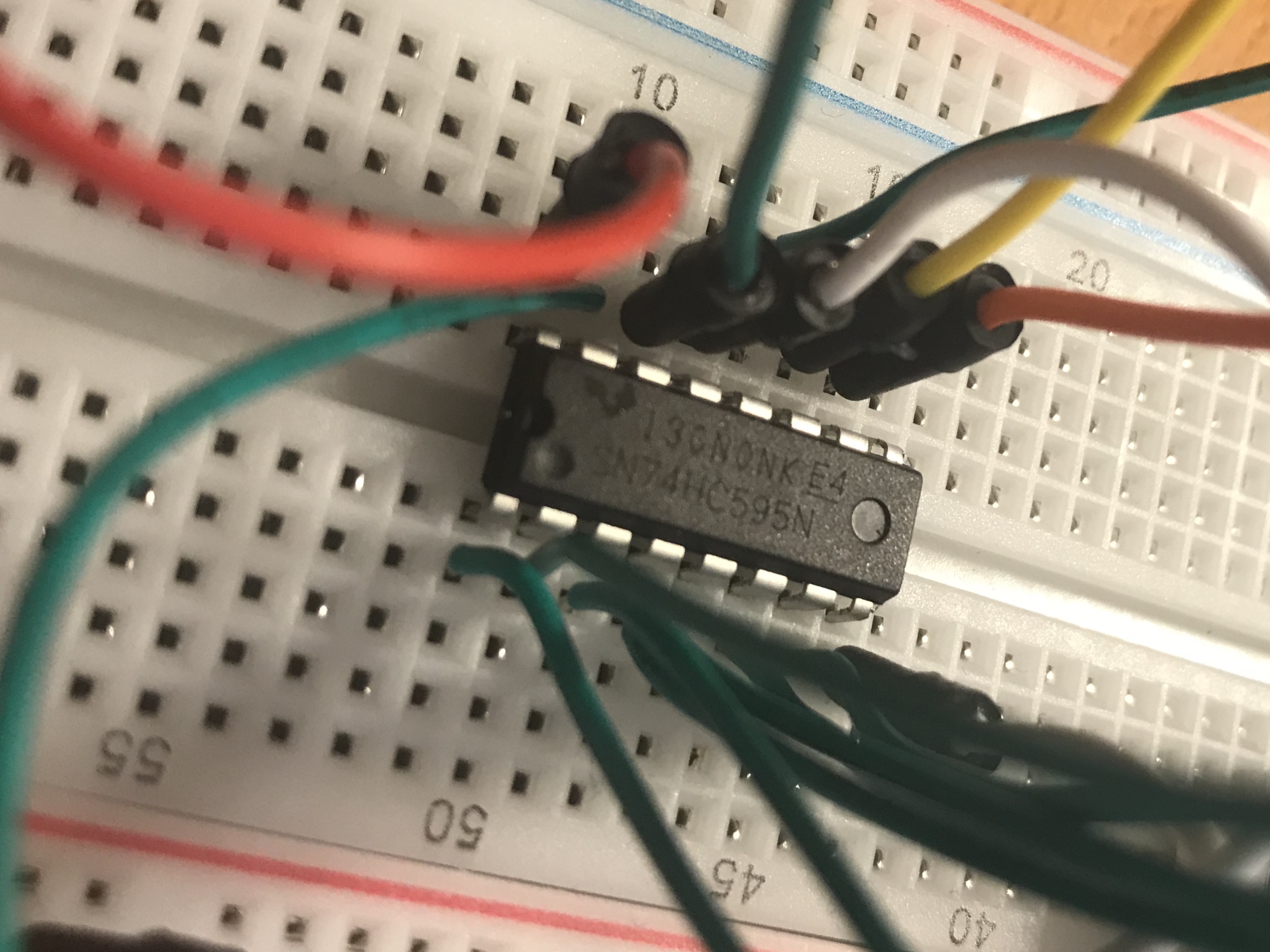

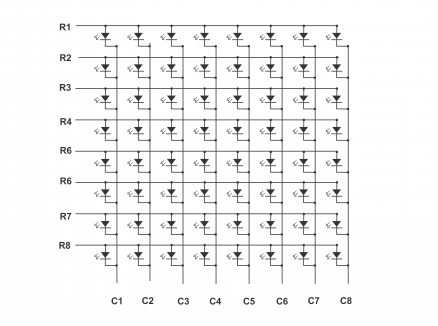

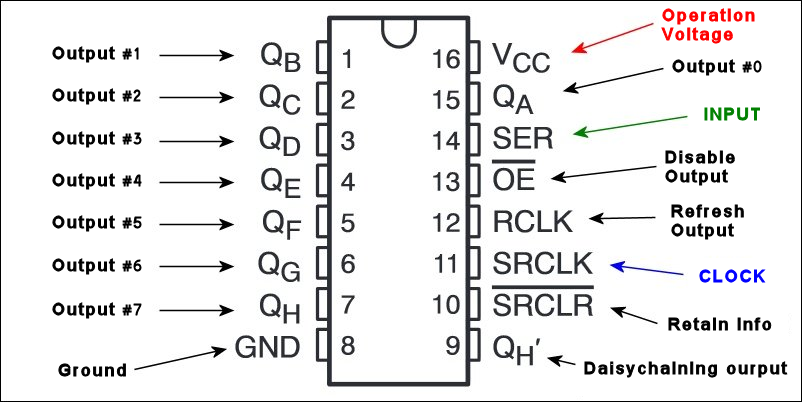

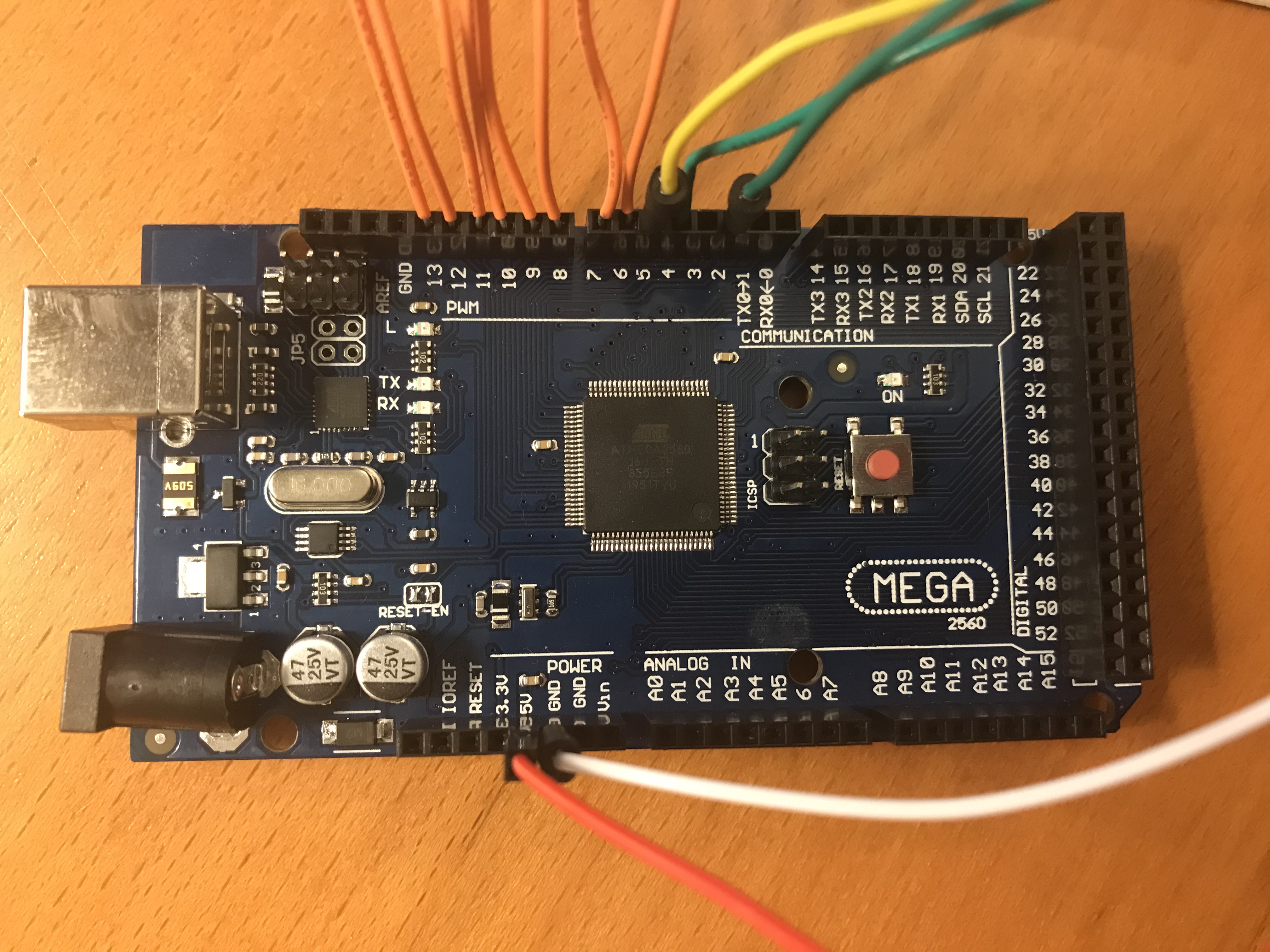

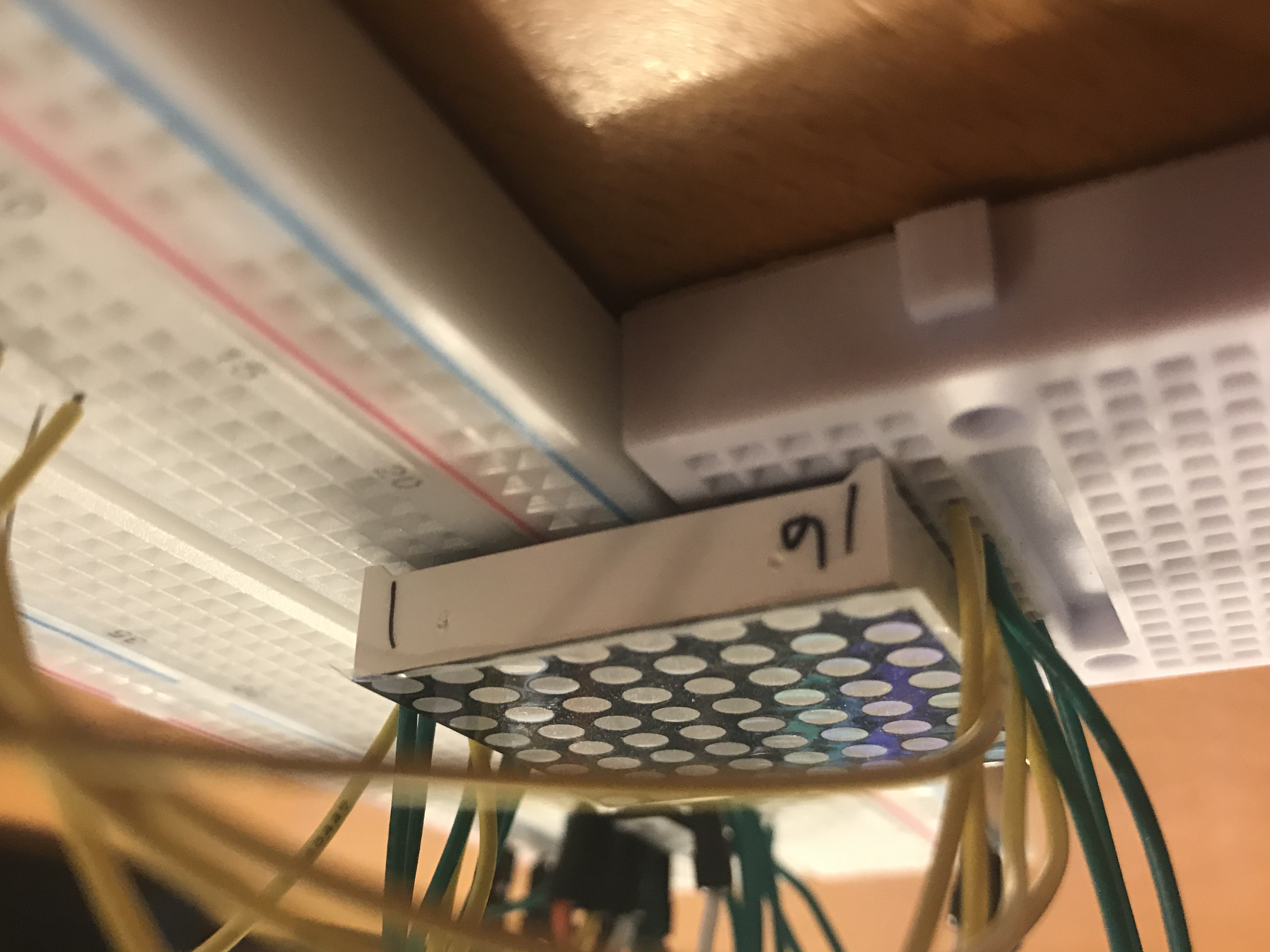

Hardware used: Arduino MEGA 2560, 8 x 220 Ω Resistors, SN74HC595N Shift Register, and the 8x8 LCD Display.
A good source for more info can be found here!
